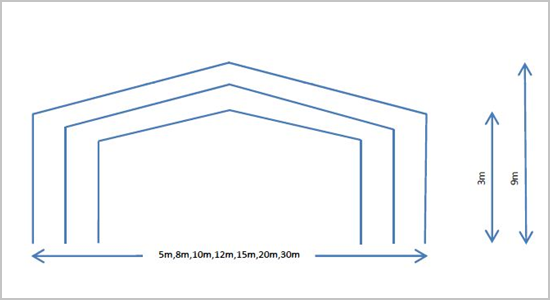

Frame Specifications |
|||||||||||
| Span Width (m) | : | 2.5 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | 25 | 30 |
| Side Height (m) | : | 2.5 | 2.5 | 2.5 | 3.3 | 3.3 | 3.3 | 4.1 | 4.1 | 3.7 | 3.7 |
| Ridge Height (m) | : | 3.04 | 4.85 | 4.85 | 4.85 | 5.10 | 5.60 | 6.35 | 7.50 | 8.20 | 9.00 |
| Min. Length (m) | : | 5.00 | |||||||||
| Max. Length (m) | : | No Limit | |||||||||
Material Specifications |
|
| Aluminium (Framework) | : Hard pressed extruded aluminium |
| PVC covering | : White - high gloss PVC |
| Steel (Connections) | : Hot dipped galvanized |
Optional Accessories |
| Walling System |
| Entrance Canopy |
| Lightning |
| Flooring |
| Door |
